Future Use Cases

Use cases planned for post-MVP releases.

Use Case: Transfer Deployment Package with SBOM

Scenario

Transfer an AirGap Deploy package that includes a CycloneDX SBOM across the air gap. The transfer manifest references the SBOM file, and the audit trail records its presence for chain-of-custody documentation.

Use Case: Transfer Deployment Package with SBOM Metadata UC-TRANSFER-004

status: proposed

tags: transfer, v1.1, sbom, workflow

priority: could

release: v1.1

specifies: FR-TRANSFER-048, FR-TRANSFER-049

Transfer a deployment archive containing an SBOM file. AirGap Transfer detects the SBOM in the manifest and logs its presence in the audit trail, providing chain-of-custody documentation for the bill of materials.

Pack: SBOM file (sbom.cdx.json) detected among files in the deployment archive. Transfer manifest records the SBOM reference.

Transfer: SBOM verified by the same SHA-256 integrity checks as all other files.

Unpack: SBOM extracted alongside application files. Audit trail includes SBOM reference for compliance documentation.

Acceptance Criteria: SBOM file integrity verified after transfer, SBOM reference recorded in transfer manifest and audit trail.

Prerequisites

Deployment archive: Package created by AirGap Deploy v1.1 with --sbom flag (includes sbom.cdx.json)
AirGap Transfer v1.1: Version with SBOM-aware manifest support
USB drive(s): Sufficient capacity for the deployment archive

Workflow Steps

Pack with SBOM

When packing a deployment archive that contains an SBOM, AirGap Transfer detects the sbom.cdx.json file and records it in the transfer manifest:

# Pack deployment archive (SBOM is inside the archive)
airgap-transfer pack secure-app-v1.0.0.tar.gz /media/usb-drive

# Transfer manifest automatically references the SBOM

Transfer

Physical transfer proceeds as normal. The SBOM file is verified by the same SHA-256 integrity checks as every other chunk:

Physically move USB drive(s) across air-gap boundary
Chain of custody maintained — the SBOM reference in the manifest provides additional documentation of what was transferred

Unpack with Audit Trail

# On air-gapped machine
airgap-transfer unpack /media/usb-drive ~/deployment/

# Audit trail includes:
# - Transfer timestamp
# - File manifest with checksums
# - SBOM reference (sbom.cdx.json location within archive)
# - Verification status

The SBOM is now available on the air-gapped system for vulnerability scanning with airgap-deploy scan.

Acceptance Criteria

SBOM file integrity verified after transfer (SHA-256 checksum match)
SBOM reference recorded in transfer manifest
SBOM reference included in audit trail
No additional user intervention required — SBOM handling is automatic

Linked Requirements

ID	Title	Status	Release	Verified By
FR-TRANSFER-048	Reference SBOM in Transfer Manifest	proposed	v1.1
FR-TRANSFER-049	Log SBOM in Transfer Audit Trail	proposed	v1.1

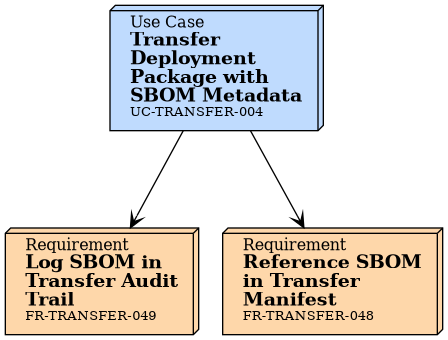

Traceability

Future Use Case Overview

ID	Title	Release	Status	Specifies
UC-TRANSFER-004	Transfer Deployment Package with SBOM Metadata	v1.1	proposed	FR-TRANSFER-048; FR-TRANSFER-049
